Omega Technologies is an authorized distributor of CLECO® Tools

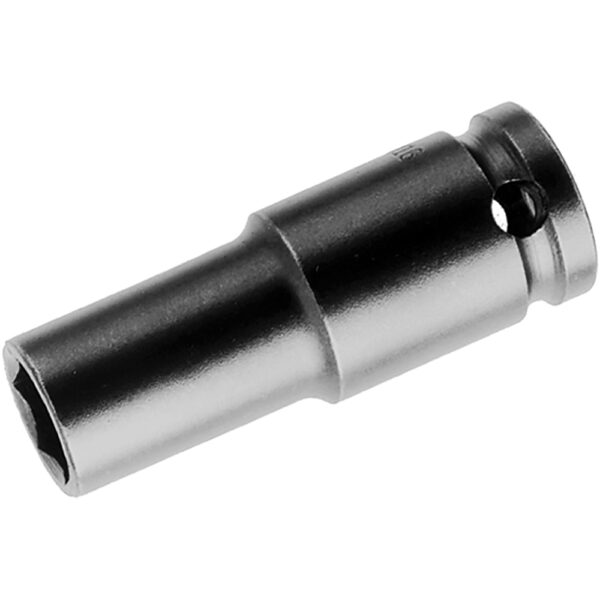

5426 Apex 13/16” Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 13/16” Overall Length: 1 1/2” Diameter Nose End: 1 1/8” Diameter Drive End: 1 1/8” Opening Depth: 17/32”
$31.41
5426 Apex 13/16” Thin Wall Standard Socket, 1/2” Square Drive from Apex Fastener Tools accommodate countersunk or limited clearance nut or bolt locations. Many of these impact sockets have a shouldered body design that can fit in tight quarters.
5426 Apex 13/16” Thin Wall Standard Socket, 1/2” Square Drive from Apex Fastener Tools, formally Cooper Tools, have hex tolerances that are on average 48% tighter than DIN and 35% tighter than ANSI requirements. Apex impact sockets provide an exact, sure fit every time. Impact sockets from Apex Fastener Tools provide the tightest tolerances for straightness and concentricity available.
High strength fasteners in the aviation industry or high performance automotive field often require the use of an impact wrench or impact driver to deliver the amount of torque required to tighten or loosen them.
5426 Apex 13/16” Thin Wall Standard Socket, 1/2” Square Drive from Apex Fastener Tools are designed and manufactured for high impact use. Apex impact sockets are made from stronger alloy steel than the average impact socket.
Socket Type | Thin Wall Standard |
---|---|
Hex Opening | 13/16'' |
Overall Length | 1 1/2'' |
Diameter Nose End | 1 1/32'' |
Diameter Drive End | 1 1/8'' |
Opening Depth | 17/32'' |
HE-530 Apex 15/16” Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 15/16” Overall Length: 1 1/2” Diameter Nose End: 1 5/16” Diameter Drive End: 1 5/16” Opening Depth: 5/8”
5436-D Apex 1 1/8” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 1 1/8” Overall Length: 1 5/8” Diameter Nose End: 1 1/2” Diameter Drive End: 1 1/2” Opening Depth: 3/4”
5434-D Apex 1 1/16” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 1 1/16” Overall Length: 1 5/8” Diameter Nose End: 1 7/16” Diameter Drive End: 1 7/16” Opening Depth: 11/16”
5432-D Apex 1” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 1” Overall Length: 1 1/2” Diameter Nose End: 1 3/8” Diameter Drive End: 1 3/8” Opening Depth: 5/8”
5430-D Apex 15/16” 12-Point Extra Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 15/16” Overall Length: 1 1/2” Diameter Nose End: 1 1/4” Diameter Drive End: 1 1/4” Opening Depth: 5/8”
5426-D Apex 13/16” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 13/16” Overall Length: 1 1/2” Diameter Nose End: 1 1/8” Diameter Drive End: 1 1/8” Opening Depth: 17/32”
5424-D Apex 3/4” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 3/4” Overall Length: 1 1/2” Diameter Nose End: 1 1/32” Diameter Drive End: 1 1/8” Opening Depth: 15/32”
5422-D Apex 11/16” 12-Point Extra Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 11/16” Overall Length: 1 1/2” Diameter Nose End: 15/16” Diameter Drive End: 15/16” Opening Depth: 7/16”
5419-D Apex 19/32” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 19/32” Overall Length: 1 1/2”
5416-D Apex 1/2” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 1/2” Overall Length: 1 1/2” Diameter Nose End: 23/32” Diameter Drive End: 15/16” Opening Depth: 11/32”
5414-D Apex 7/16” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 7/16” Overall Length: 1 1/2” Diameter Nose End: 21/32” Diameter Drive End: 15/16” Opening Depth: 9/32”
5412-D Apex 3/8” 12-Point Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 3/8” Overall Length: 1 1/2” Diameter Nose End: 19/32” Diameter Drive End: 15/16” Opening Depth: 1/4”
5442 Apex 1 5/16” Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 1 5/16” Overall Length: 1 3/4” Diameter Nose End: 1 25/32” Diameter Drive End: 1 7/8” Opening Depth: 13/16”
5436 Apex 1 1/8” Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 1 1/8” Overall Length: 1 5/8” Diameter Nose End: 1 1/2” Diameter Drive End: 1 1/2” Opening Depth: 3/4”
5434 Apex 1 1/16” Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 1 1/16” Overall Length: 1 5/8” Diameter Nose End: 1 7/16” Diameter Drive End: 1 7/16” Opening Depth: 11/16”
5430 Apex 15/16” Extra Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 15/16” Overall Length: 1 1/2” Diameter Nose End: 1 1/4” Diameter Drive End: 1 1/4” Opening Depth: 5/8”
5428 Apex 7/8” Extra Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 7/8” Overall Length: 1 1/2” Diameter Nose End: 1 3/16” Diameter Drive End: 1 1/4” Opening Depth: 9/16”
5420 Apex 5/8” Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 5/8” Overall Length: 1 1/2” Diameter Nose End: 7/8” Diameter Drive End: 15/16” Opening Depth: 7/16”
5418 Apex 9/16” Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 9/16” Overall Length: 1 1/2” Diameter Nose End: 13/16” Diameter Drive End: 15/16” Opening Depth: 7/16”
5414 Apex 7/16” Thin Wall Standard Socket, 1/2” Square Drive. Hex Opening: 7/16” Overall Length: 1 1/2” Diameter Nose End: 21/32” Diameter Drive End: 15/16” Opening Depth: 9/32”
